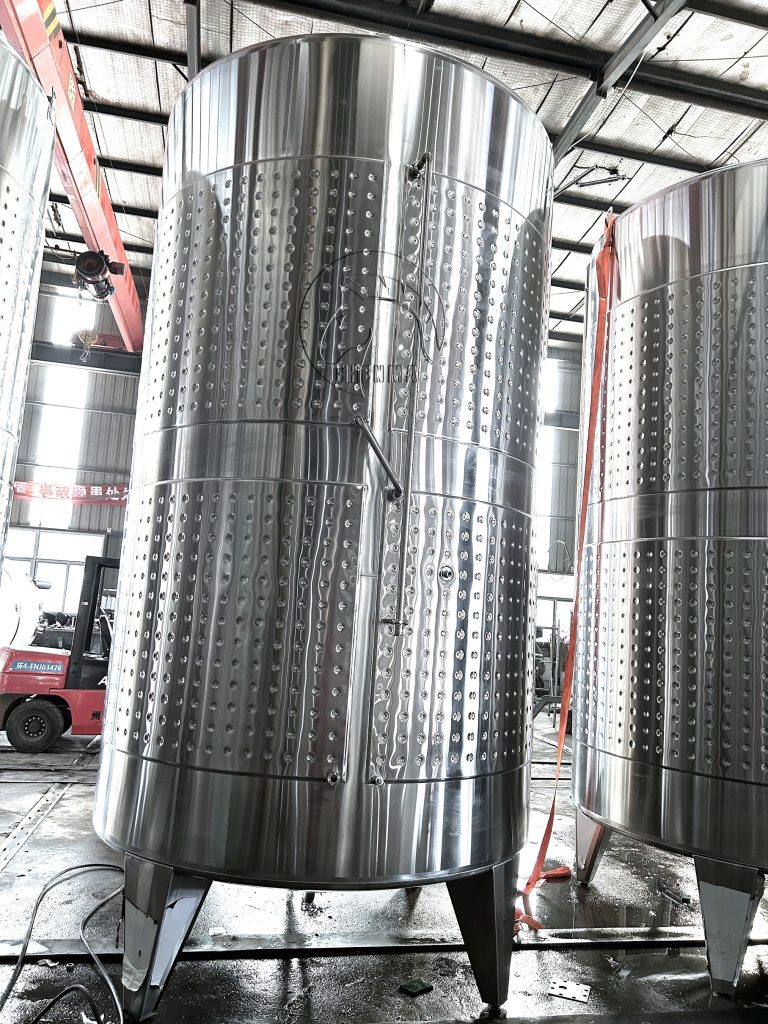

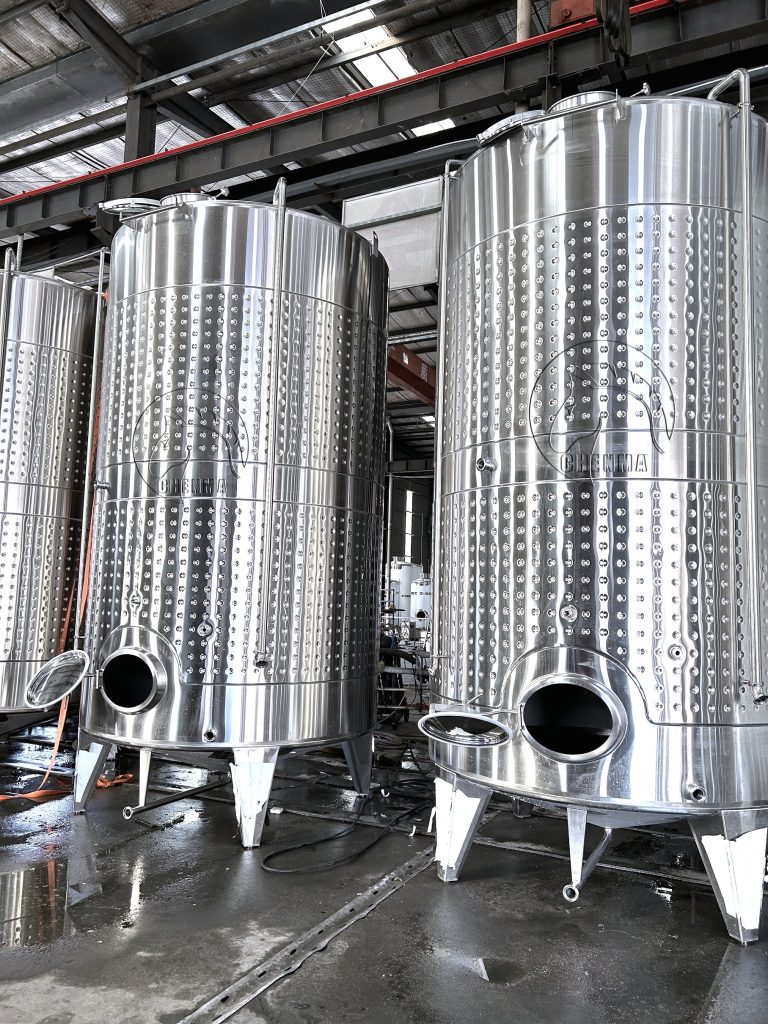

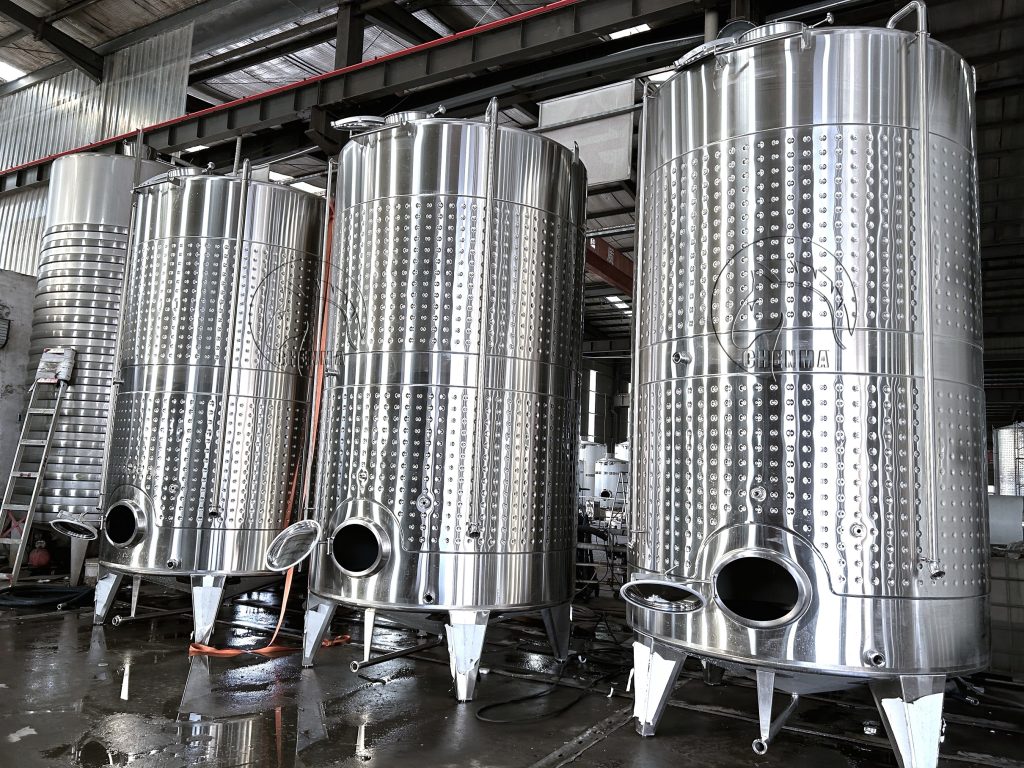

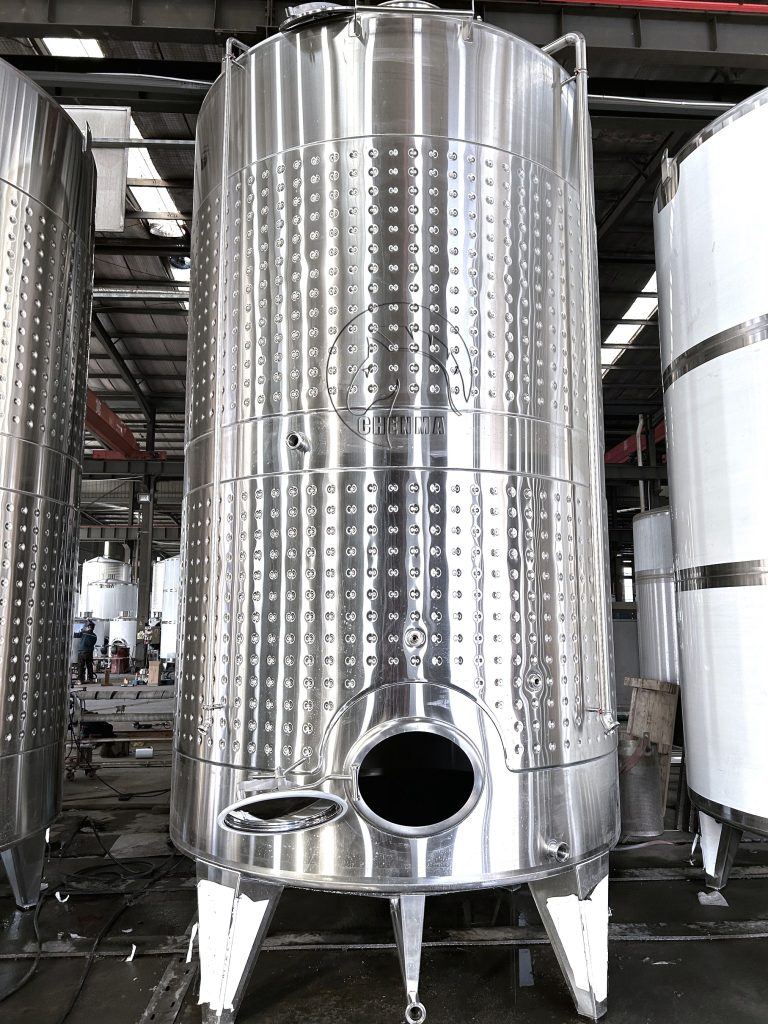

10,000L White Wine Fermentation Tank

10,000L White Wine Fermentation Tank

10000L vertical white wine fermentation tank, made of food grade stainless steel 304, with cooling jacket,equipped with complete standard ports( breathing valve and temperature sensor, CIP spray ball and so on), conical bottom design for easy discharge, ideal equipment for white wine brewing production.

Specification for 10,000L white wine fermenter tanks as follows:

1.Sanitary Stainless steel 304, thickness of material:3mm, inside for the tank will be pickling and passivation and internal welding line will be polished;

2.Effective capacity: 10000L;

3.Size:diameter for 2050mmxheight for 4216mm;

4.Conical centric top;

5.Top Manhole Cover, the size for the top manhole is DN500mm;
6.0.75″Sample valve;
7.2″drain outlet assembly, triclamp/RJT/thread/DIN connection;

8.2″racking valve, triclamp/RJT/thread/DIN connection;
9.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;
10.Fully welded cladding;
11.Side oval manway, the size for the oval manway is 530mmx430mm;
12.PT100 temperature probe;
13.1″Glycol inlet/outlet;

14. 2″ Breather valve;

15.Conical bottom;

16.CIP spray ball;

17.Bimetallic thermometer;

18.Stainless steel legs with screw assembly to adjust leg height.
