10,000L Yogurt Fermentation Tank

10,000L Yogurt Fermentation Tank

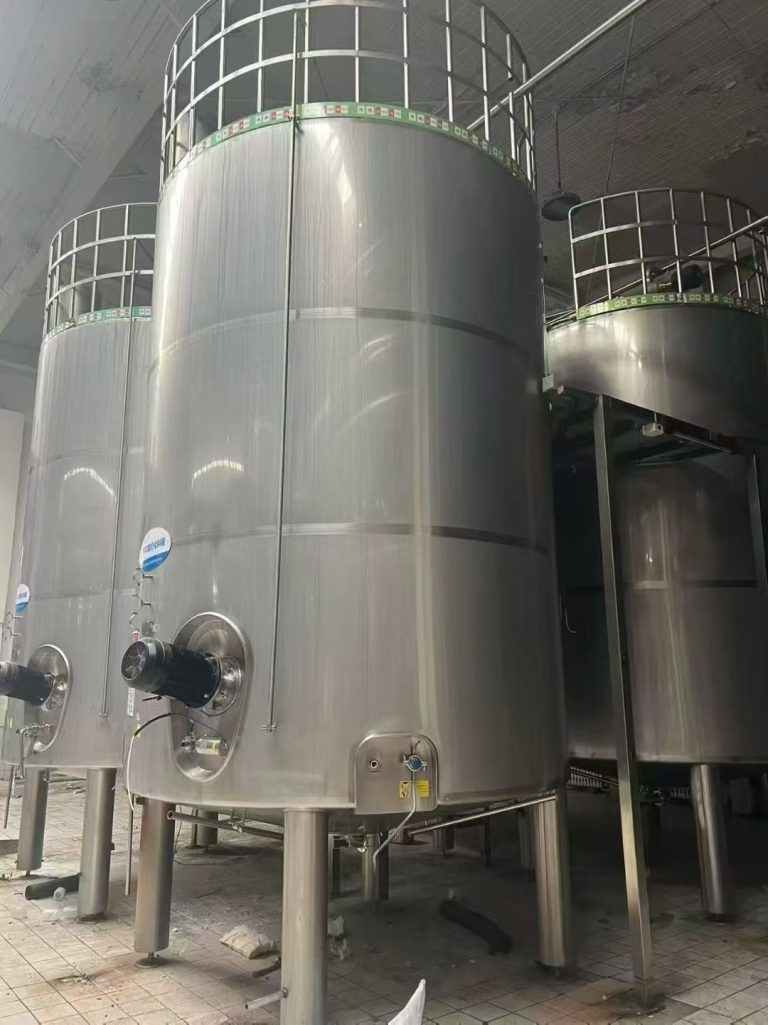

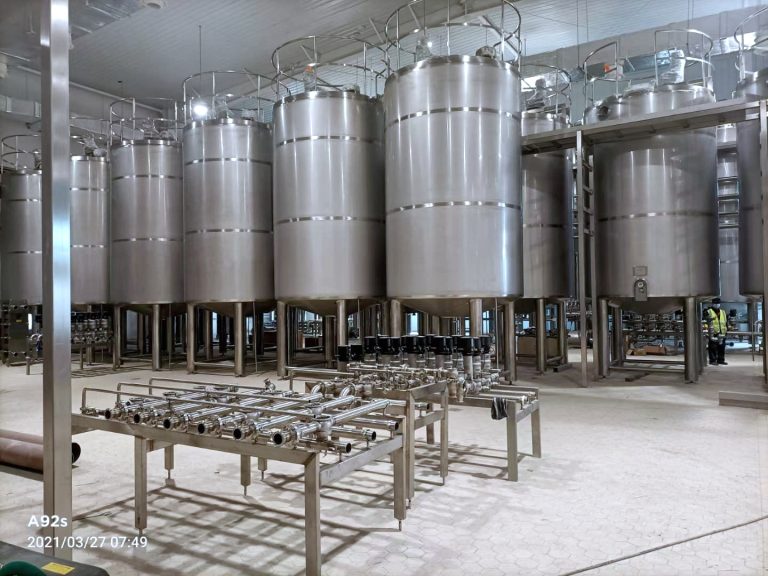

10,000 L stainless steel fermentation tanks that can be used for yogurt or dairy fermentation/production (industrial-scale) —including options with jackets, agitation and insulation and so on.

Specification for 10,000L Yogurt Fermentation Tank as follows:

1.Sanitary Stainless steel 304, thickness for inner body is 3mm and thickness for cladding is 2mm;

2.Material of parts in contact with the product is SS316 and material of parts not in contact with the product is SS304;

3.Effective capacity:10000L, total capacity:11140L;

4.Dimension for the tank:diameter2200mm and height 4730mm;

5.Top atmospheric pressure manway, size:DN500mm;

6.Side manway, the size for manway:530mmx430mm;

7.8’’Sterile respiratory system and material: stainless steel 304;

8.3’’ milk inlet and 3’’ milk outlet with butterfly valves;

9.1’’sterile sample valve, material: stainless steel 316L;

10.Bimetal thermometer;

11.With side agitator and power is 5.5kw, Speed is 960 rpm, ABB agitation motor, material is stainless steel 304,with frequency conversion;

12.Conical top and thickness of material is 3mm and conical bottom and thickness of material is 4mm and bottom angle is 140degree;

13.With Cooling/Heating jacket for heating with steam (up to 94°C) and cooling with water (up to 4°C);

14.With PU insulation and thickness of insulation is 100mm;

15.Every tank with 2 sets of IFM brand high and low level sensors, 1 set of IFM brand temperature sensor, 1 set of IFM brand differential pressure sensor;

16.With 2pcs CIP rotating spray balls;
17.Fully welded cladding;

18.Welding method is argon arc welding, pickling and passivation for inside of the tank, internal welding line is polished;

19.Stainless steel 4pcs legs with screw assembly to adjust leg height, diameter for leg is 219mm.
