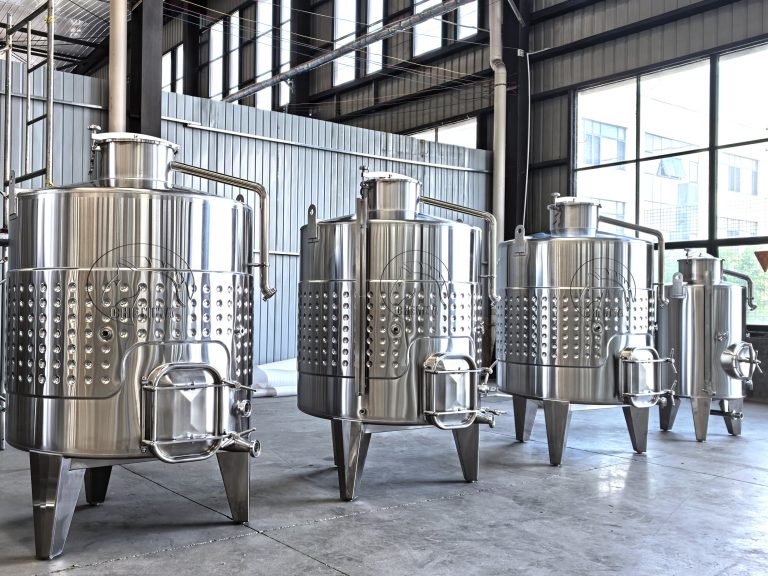

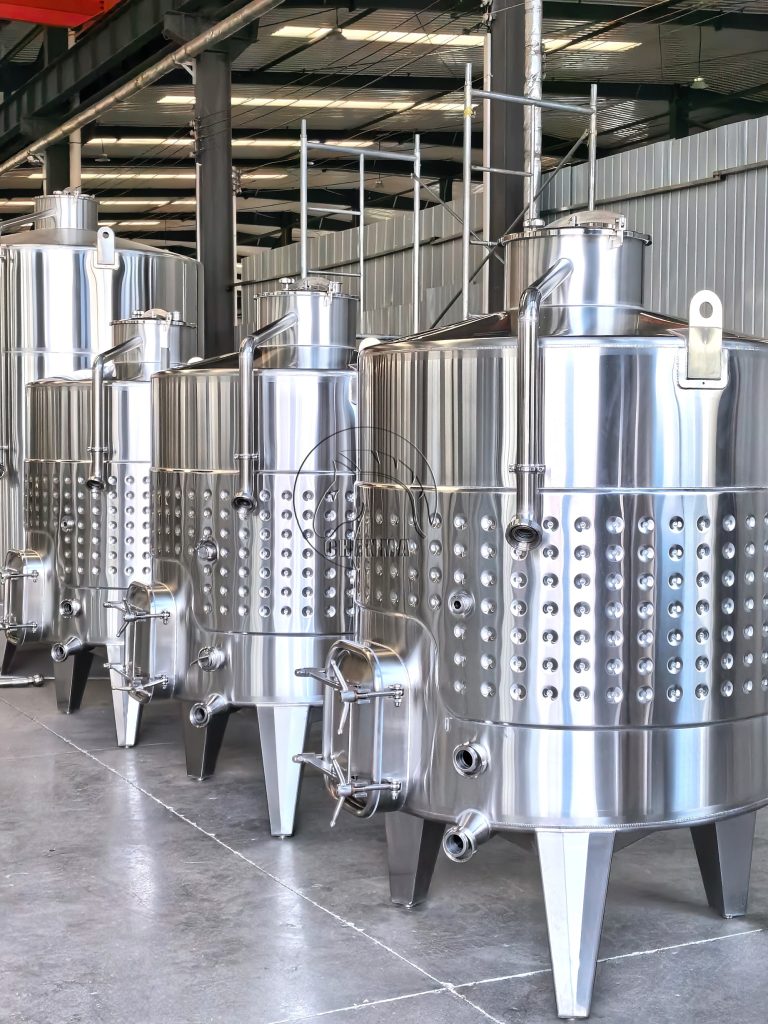

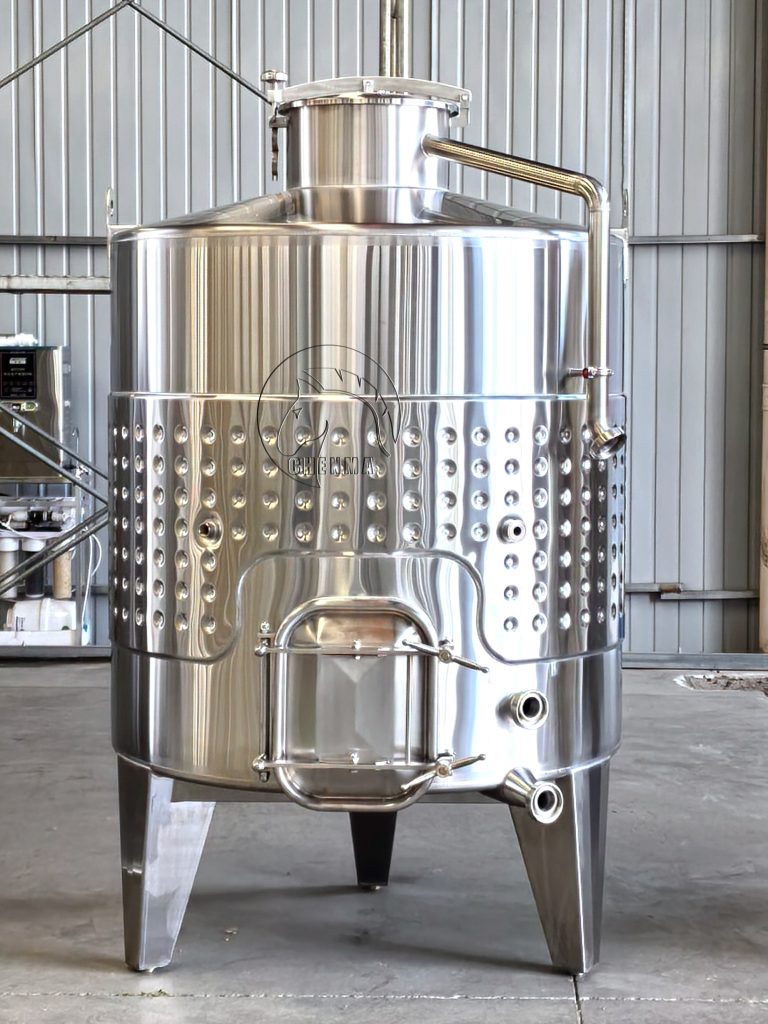

1500L Red Wine Fermentation Tank
This 1500L red wine fermentation tank is specially designed for red wine brewing, widely used in medium-sized wineries and craft wine workshops, made of high-quality food-grade 304 or 316L stainless steel, the inner wall adopts 2B polishing and pickling and passivation, smooth and no dead corners, which effectively prevents bacteria and ensures wine quality and the sloped bottom design realizes complete discharge without material residue.
Product details
1500L Red Wine Fermentation Tank
1500L Stainless Steel Red Wine Fermentation Tank, food grade material, precise temperature control, ideal for commercial wineries!
Specification for 1500L red wine fermentation tank as follows:
1.Food grade stainless steel 304,thickness of material:2mm;
2.Volume: 1500L;
3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.2’’Wine outlet and drain outlet assembly, DIN50 connections (threads);
7.Dimple cooling jacket;
8.Jacket inlet&outlet 1″female thread;
9. Fully welded cladding;
10.Top Manhole Cover, the size for the top manhole is DN400mm;
11.Side rectangle manway, the size for the manway is 430mmx330mm;
12.Internal welding line will be polished;
13.PT 100 Temperature Probe;
14.With all valves having DIN50connections (threads);
15. Sloped flat bottom;
16.2″ Breather valve;
17.Lift lugs;
18.Bimetallic thermometer;
19.There is a filter screen inside of tank;
20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
