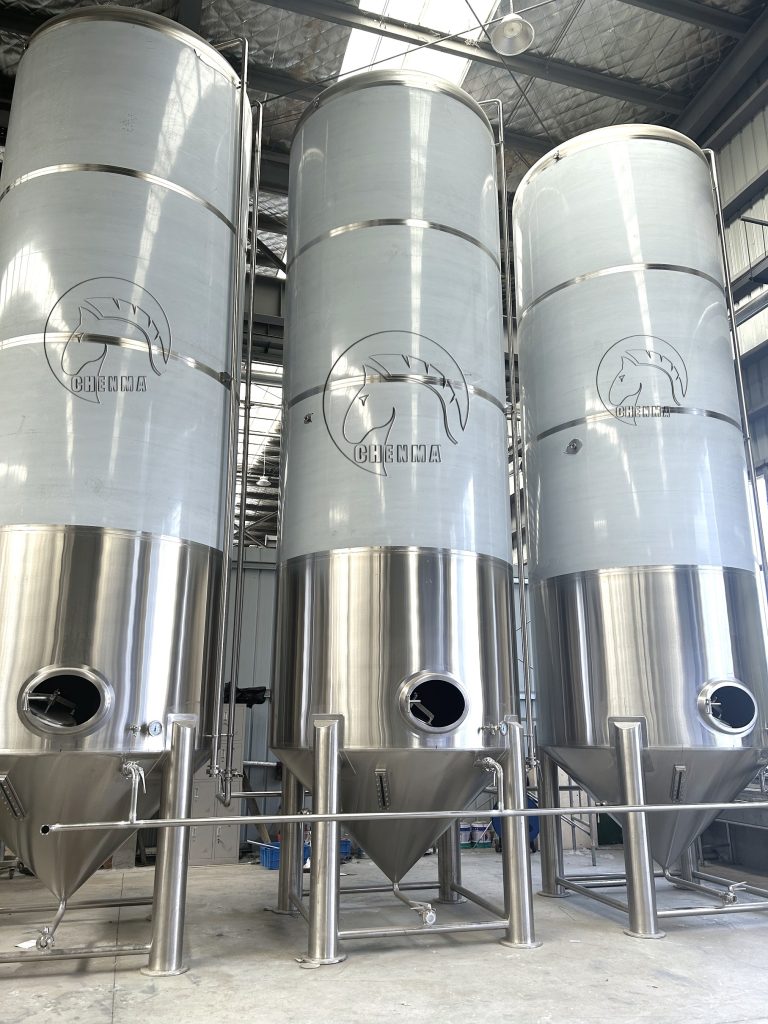

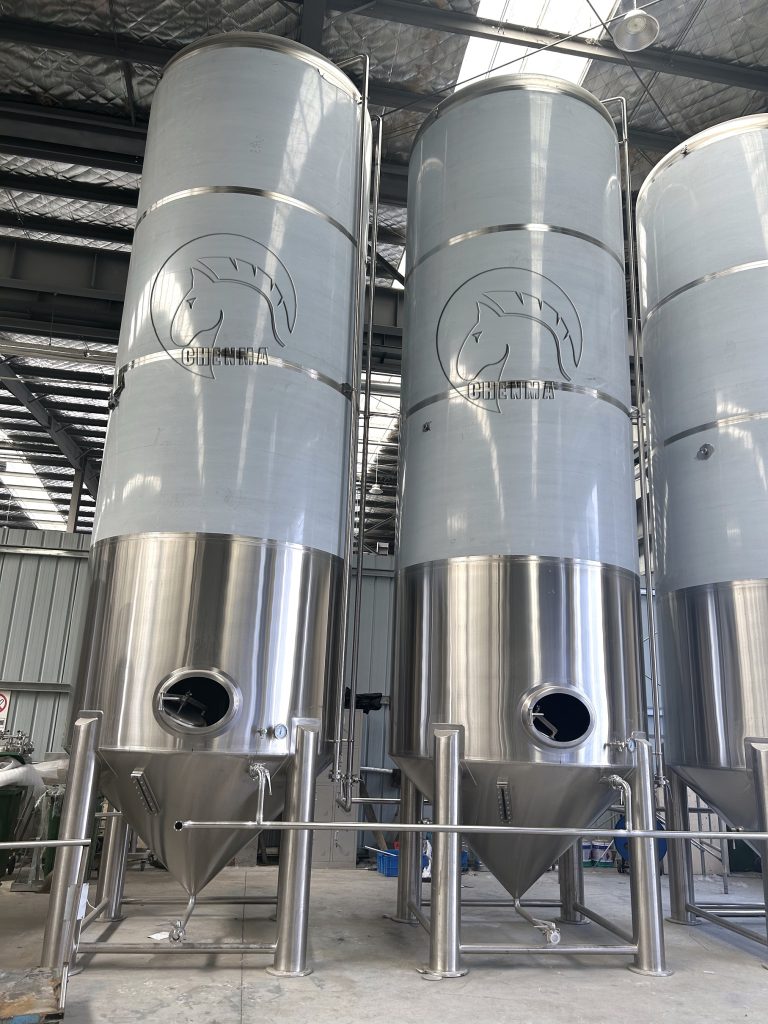

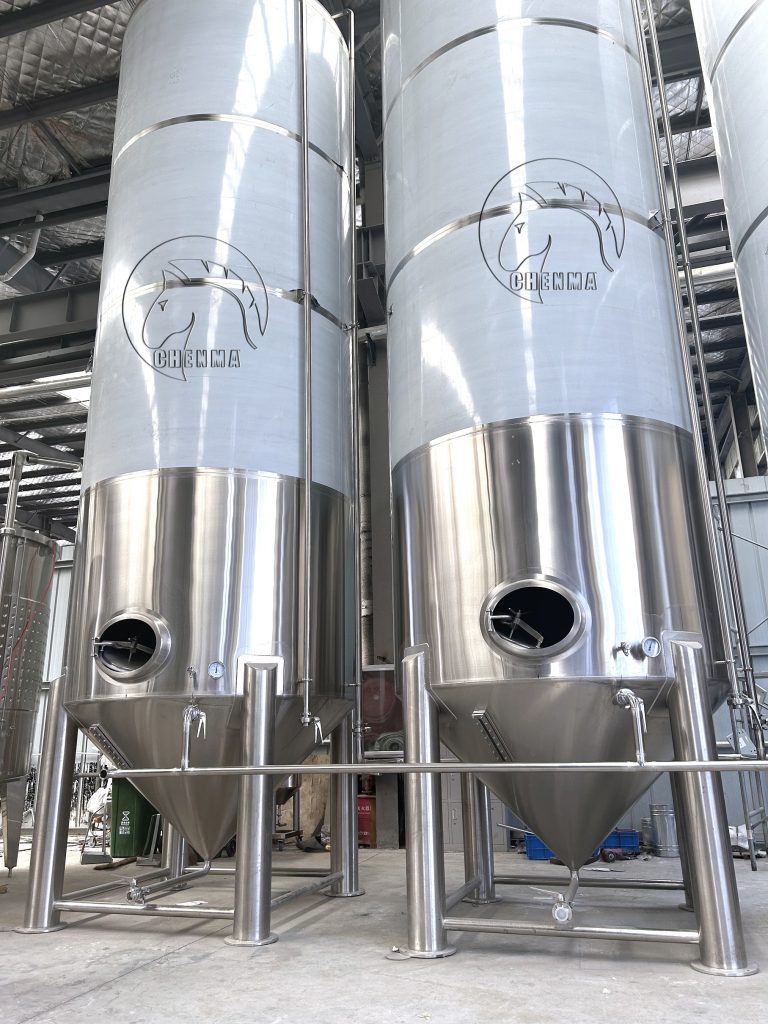

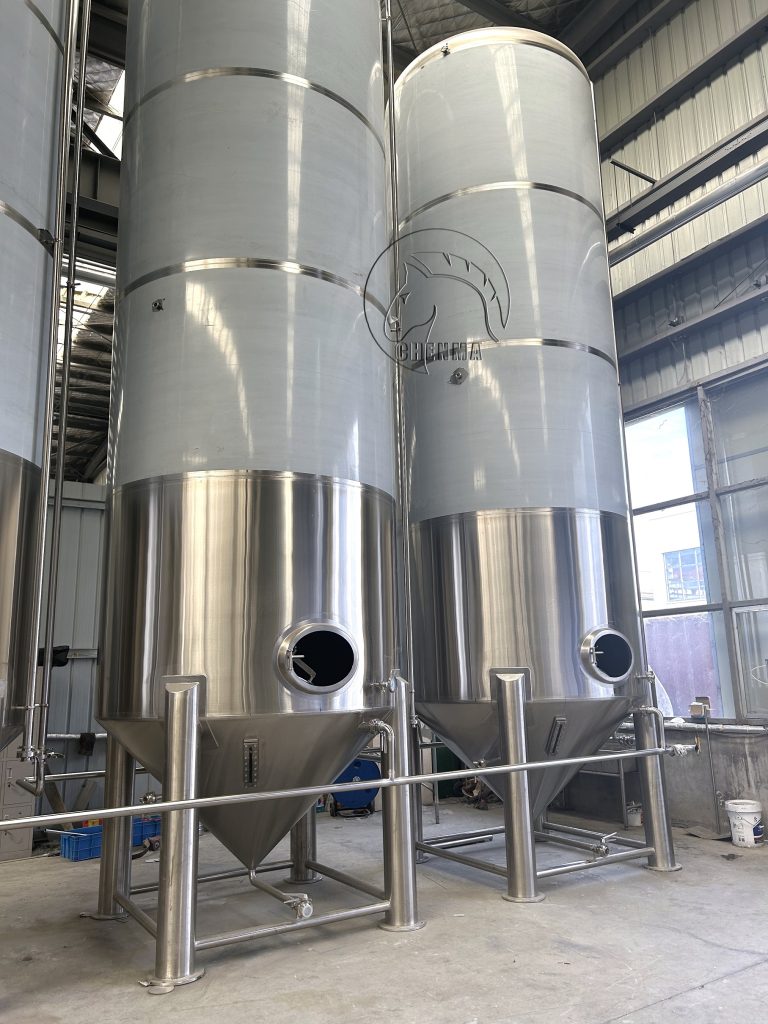

25,000L Stainless Steel Olive Oil Tank

25,000L Stainless Steel Olive Oil Tank

Stainless steel olive oil tank used for storage of extra virgin olive oil, refined olive oil and edible vegetable oil, vertical cylindrical atmospheric tank, floor-standing design for indoor & outdoor installation, Ideal for large-volume storage, settling and ageing of olive oil and other edible oils, widely used in oil mills, food processing plants and oil storage warehouses.

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity:25,000L;

3.Vertical Cylinder shape;

4.The thickness for bottom base is 4mm and the thickness of cylinder is 4mm-3mm and conical top is 4mm;

5.2″nitrogen inlet on the top of tank;

6.Domed top and conical bottom ;

7.1.5″Sample valve;

8.3″oil outlet with butterfly valve;

9.3″Drain outlet with butterfly valve;

10.There has a sight glass on the conical bottom ;

11.Fully welded cladding;

12.Side oval manway, the size is 530mmx430mm, EPDM;

13.Breather pipe DN100mm;

14.The tanks without jacket and without insulation;

15.Liquid level gauge;

16.CIP spray ball;

17.Bimetallic thermometer;

18.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
