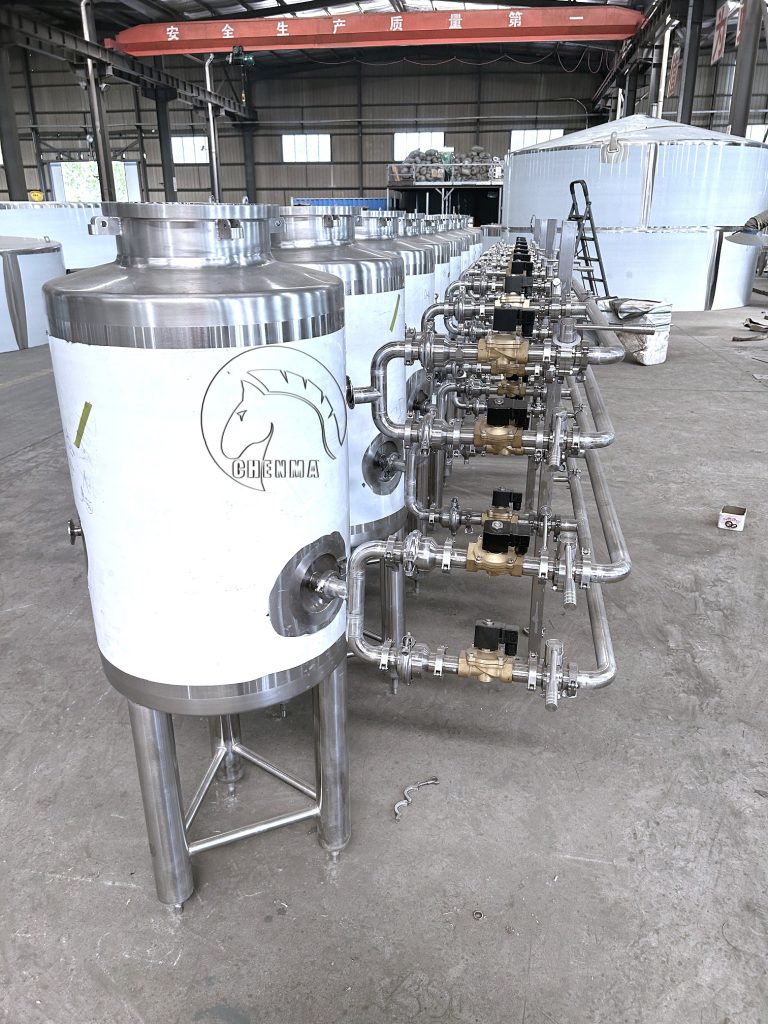

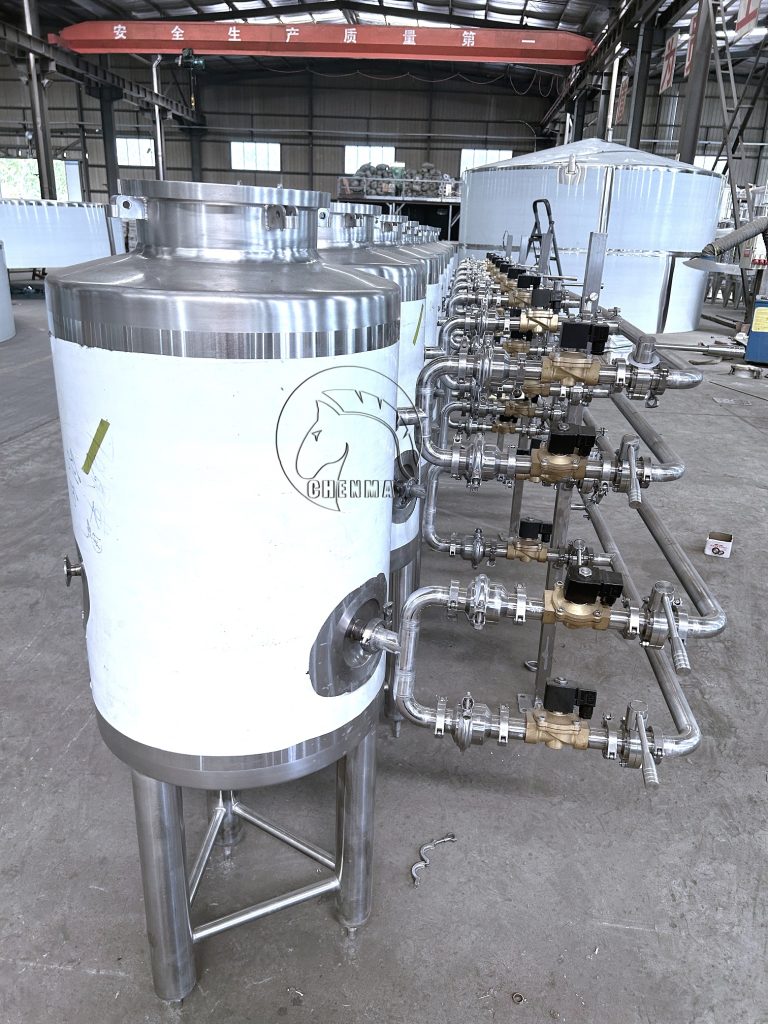

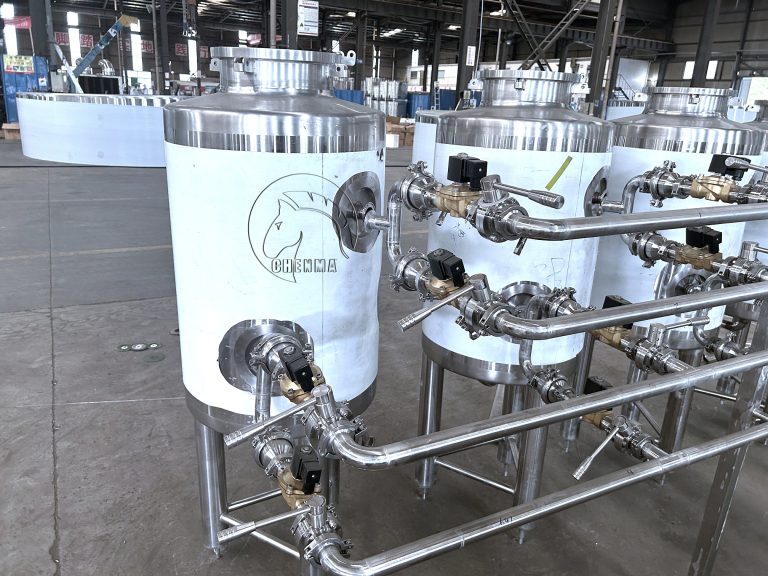

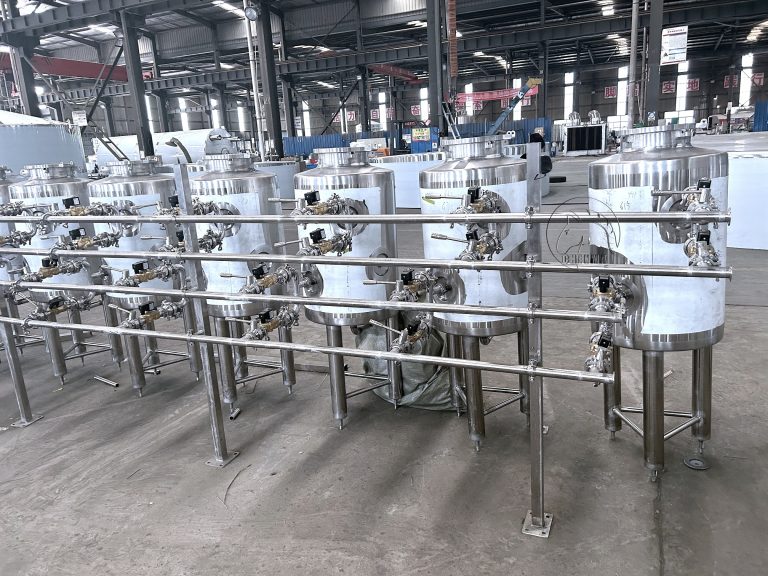

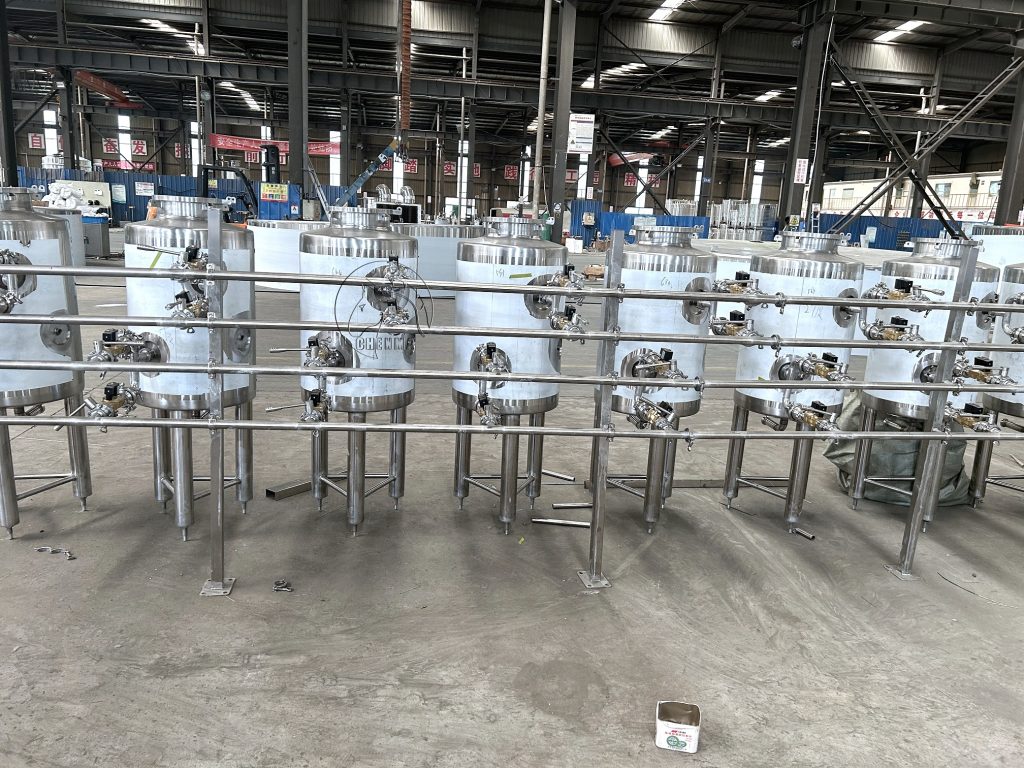

70L Double Wall Cider Fermentation Tank
70L double wall cider fermentation tank with cooling/heating jacket and insulation, also with heating and cooling pipeline and solenoid valves. for cider making, temperature stability is one of the biggest quality upgrades you can make, cooler, controlled fermentation helps preserve apple aromatics and reduces harsh fusels.
Product details
70L Double Wall Cider Fermentation Tank
1.Food grade stainless steel 304,thickness of inner body is 2mm and cladding is 1.5mm;
2.Volume: 70L;
3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.1.5’’cider outlet and drain outlet assembly, tri-clamp connection;
7.Dimple cooling jacket;
8.Jacket inlet&outlet,1″female thread;
9.With PU insulation and thickness of insulation is 50mm;
10.Fully welded cladding;
11.Top Manhole Cover, the size for the top manhole is DN200mm;
12.With steam heating and cooling jacket;
13.PT 100 Temperature Probe;
14.With steam pipeline and cooling pipeline and solenoid valves;
15.Conical bottom;
16.2″ Breather valve;
17.Bimetallic thermometer;
18.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
