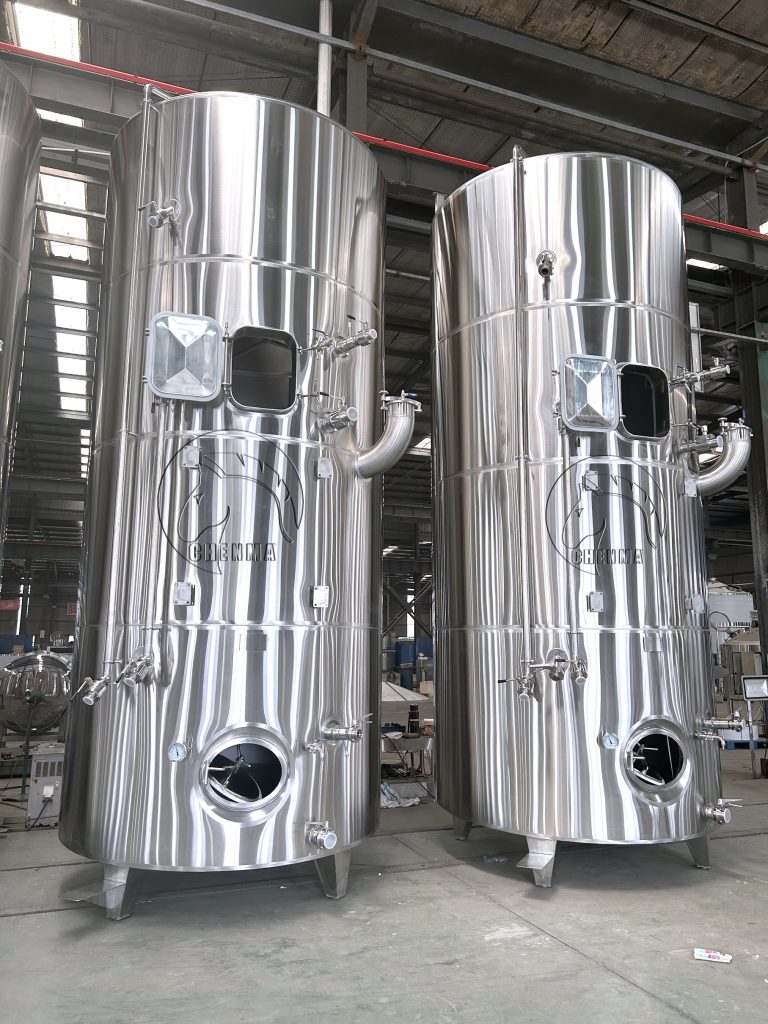

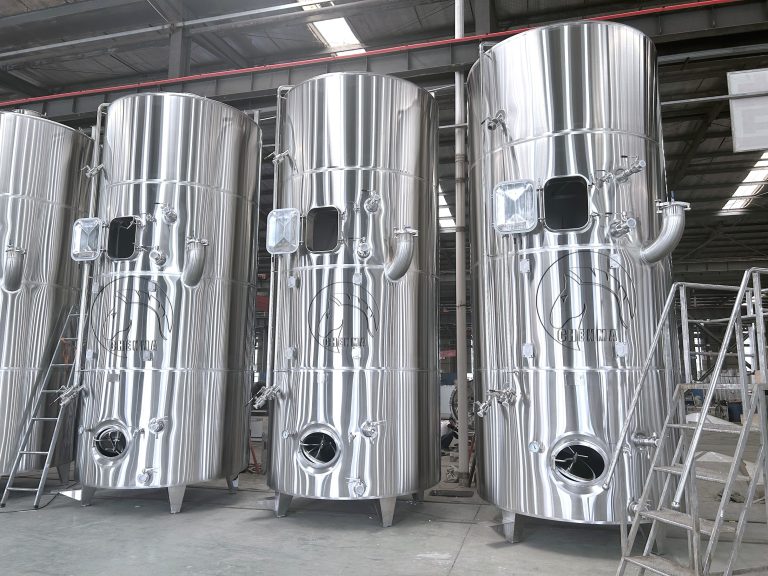

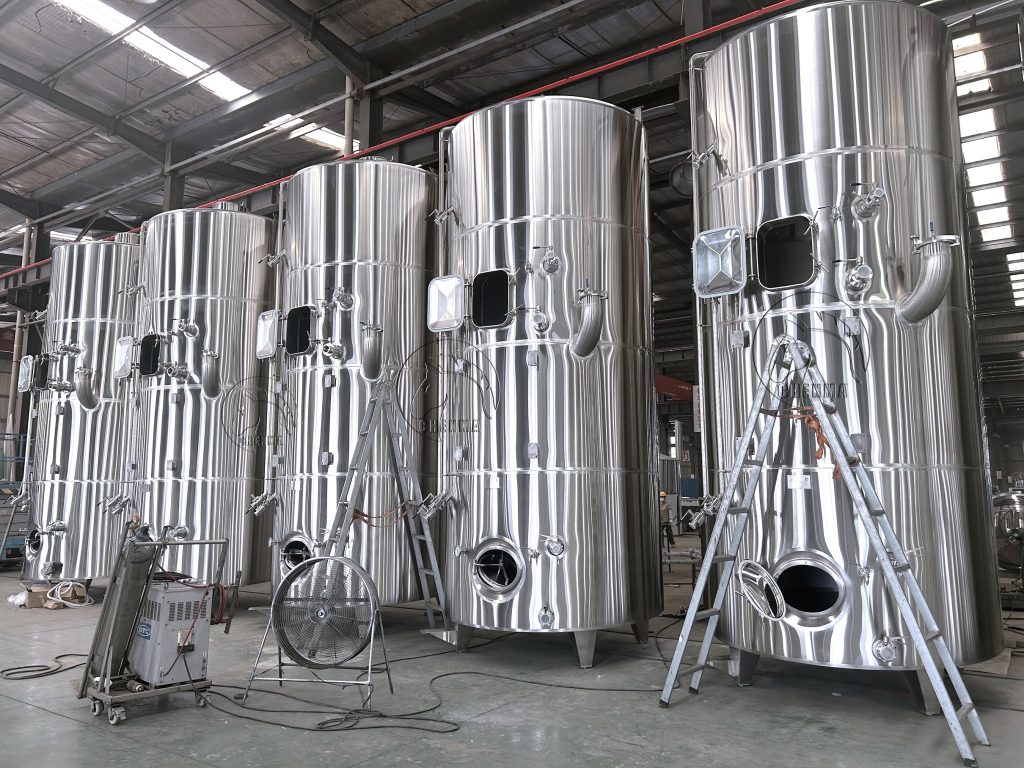

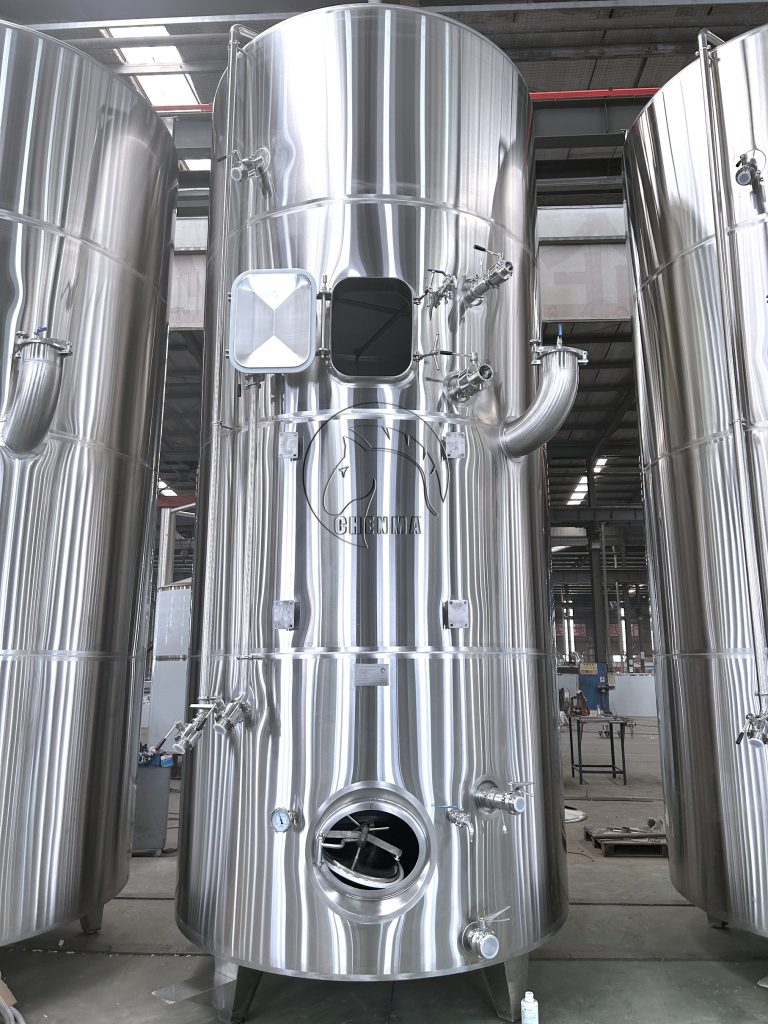

Combi Tanks 7000L+8000L Wine Tank

                                     Combi Tanks 7000L+8000L Wine Tank

7000L+8000L stainless steel combi wine tanks are specially designed for wineries and beverage producers requiring efficient wine fermentation, storage, and maturation solutions. This combined tank system offers two different capacities, providing greater flexibility for handling different wine batches while making efficient use of production space.

Specification for combi tanks 7000L+8000L wine tanks:

7000L red wine fermentation on the top:

1.Food grade stainless steel  304,Inner body thickness is 3mm, cladding thickness is 2mm;

2.Volume: 7000L;

3.Conical centric top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.Dimple cooling jacket;

7.Jacket inlet&outlet 1″female thread;
8. Fully welded;

9.Top Manhole Cover, the size for the top manhole is DN500mm;
10.Side rectangle manway, the size for the manway is 530mmx430mm, with chute ;

11.Inside of tank will be pickling and passivation, internal welding line will be polished;

12.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;

13.Polyurethane insulation, thickness: 100mm;
14.PT 100 Temperature Probe;
15.2″drain outlet assembly, tri-clamp connection;

16.2″racking valve, tril-clamp connection;

17. Sloped bottom;

18.2″ Breather valve;

19.Lift lugs;

20.Bimetallic thermometer;

21.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.

8000L Bottom wine storage tank:

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and internal welding line will be polished;

2.Effective capacity: 8000L;

3.Inner body thickness is 3mm, cladding thickness is 2mm;

4.Flat top;

5.0.75″Sample valve;
6.2″Wine outlet and drain outlet assembly, tri-clamp connection;

7.2″racking valve, tri-clamp connection;
8.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;

9.Polyurethane insulation, thickness: 100mm;
10.Fully welded cladding;
11.Side oval manway, the size for the oval manway is 530mmx430mm;
12.PT100 temperature probe;
13.1″Glycol inlet/outlet;

14.2″ Breather valve;

15.Sloped bottom;

16.CIP spray ball;

17.Bimetallic thermometer;

18.Stainless steel legs with screw assembly to adjust leg height.
