Choosing the right chemical mixing tank is a critical decision for manufacturers seeking reliable mixing performance and efficient production. The ideal tank should be designed around the specific requirements of your process to ensure consistent results and long-term operation.
This guide covers the main factors to consider when selecting a chemical mixing tank, from tank design and construction materials to mixing systems, temperature control, and safety features.
Key Takeaways
- Analyze fluid properties before selecting a chemical mixing tank.
- Match tank geometry and agitation systems to mixing requirements.
- Choose materials based on chemical compatibility and corrosion resistance.
- Consider thermal control, CIP, and safety features for reliable operation.
- Select an experienced manufacturer for long-term performance.
Analyze Chemical Properties Before Choosing a Chemical Mixing Tank
The first step in selecting a chemical mixing tank is understanding the characteristics of the process fluid. Material properties directly affect tank size, motor power, impeller selection, and construction materials.
Evaluate Fluid Viscosity
Fluid viscosity determines the required mixing power and agitation system.
- Low-viscosity fluids typically require higher-speed, lower-torque mixing systems.
- High-viscosity fluids require slower speeds, higher torque, and stronger shafts or impellers.
Non-Newtonian fluids, such as polymers and pastes, require additional consideration because viscosity changes during mixing.
Determine Chemical Compatibility
Chemical compatibility is critical for preventing leaks, contamination, and premature tank failure.
Before selecting a tank, evaluate:
- pH level;
- Chloride concentration;
- Chemical concentration;
- Operating temperature.
Aggressive chemicals may require upgraded stainless steel grades, protective linings, or specialty alloys.
Assess Solids Suspension and Phase Mixing Requirements
If your process involves solid-liquid slurries or multi-phase mixing, select an agitation system that maintains uniform suspension throughout the batch. Settling solids create dead zones and cause inconsistent product quality. Axial-flow impellers are the standard choice for solids suspension, as they generate strong downward flow to lift settled material.
Select the Right Chemical Mixing Tank Design
Tank geometry and mixing configuration directly influence flow patterns, mixing efficiency, and product consistency.
Choose Chemical Mixing Tank Geometry
The tank bottom design plays an important role in drainage and mixing performance.
| Tank Bottom Design | Advantages | Typical Applications |
|---|---|---|
| Dish Bottom | Smooth flow, excellent drainage, fewer dead zones | General chemical processing, slurry mixing |
| Cone Bottom | Fast discharge and easy cleaning | High-solids materials, products requiring complete drainage |
| Flat Bottom | Simple and economical design | Low-viscosity applications |
For most production processes, rounded designs are preferred because they reduce product buildup and improve cleaning efficiency.
Match Impeller Type to Mixing Requirements
The correct impeller depends on viscosity, shear requirements, and mixing objectives.
| Impeller Type | Best Application |
|---|---|
| Axial Flow | Solid suspension and bulk blending |
| Radial Flow | Emulsification and gas dispersion |
| High-Shear Rotor-Stator | Particle reduction and fine emulsification |
| Anchor / Helical Ribbon | High-viscosity materials |
Proper baffles should also be installed to prevent vortex formation and improve circulation.
Consider Chemical Mixing Tank Capacity
Tank capacity should match production requirements, batch size, and processing frequency. Choosing the correct working volume improves mixing efficiency, reduces material waste, and helps maintain consistent product quality.
| Application Scale | Typical Tank Capacity |
|---|---|
| Laboratory & Pilot Production | 100 L – 1 KL |
| Small to Medium Production | 1 – 10 KL |
| Large Industrial Production | 10 – 100+ KL |
Choose the Best Chemical Mixing Tank Material
Material selection determines corrosion resistance, durability, and service life.
Compare 304 and 316 Stainless Steel Chemical Mixing Tanks
Stainless steel is the most common material choice for chemical mixing applications.
| Material | Best Applications |
|---|---|
| 304 Stainless Steel | General chemicals, water-based solutions, neutral environments |
| 316/316L Stainless Steel | Acidic chemicals, chloride-rich environments, pharmaceutical and high-purity applications |
For stainless mixing tanks, 316L stainless steel is often selected for more demanding applications because its molybdenum content provides improved resistance to pitting corrosion and harsh chemical exposure.
Evaluate Specialty Alloys and Protective Linings
For highly corrosive chemicals, standard stainless steel may not be sufficient.
Options include:
- PTFE or fluoropolymer linings;
- Hastelloy alloys;
- Titanium materials;
- Protective coatings.
These solutions provide additional corrosion resistance for demanding applications.
Evaluate Chemical Mixing Tank Thermal Control and Safety Features
Temperature control and safety systems are essential for stable production, especially in temperature-sensitive or hazardous processes.
Select Heating and Cooling Jacket Systems
Common jacket options include:
- Dimple jackets for general heating and cooling;
- Half-pipe jackets for high heat-transfer requirements;
- Conventional jackets for standard applications.
A properly designed jacket ensures stable temperature control and improves process consistency.
Consider CIP and Cleaning Requirements
CIP-compatible chemical mixing tanks reduce cleaning time and improve hygiene.
Important features include:
- Rotating spray balls;
- Self-draining bottoms;
- Sanitary valves;
- Tri-clamp fittings.
Automated cleaning systems help reduce downtime and prevent cross-contamination.
Add Safety Features for Chemical Processing
For hazardous applications, consider:
- Pressure relief valves;

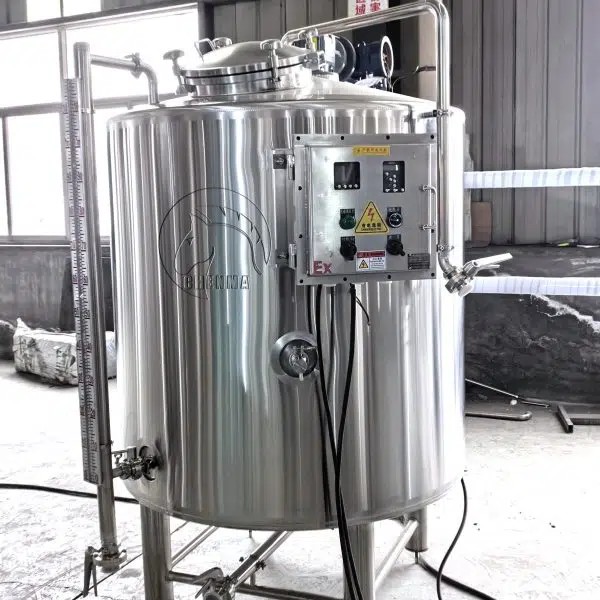

- Explosion-proof motors;
- Level sensors;
- Secondary containment systems.
Safety features should match chemical hazards and operating conditions.
Select a Reliable Chemical Mixing Tank Manufacturer
Choosing the right manufacturer is as important as selecting the tank design.
A reliable chemical mixing tank manufacturer should provide:
- Material traceability;
- Custom tank design capability;
- Quality welding standards;
- Testing and inspection procedures;
- Long-term technical support.
Experienced manufacturers such as CHENMA provide customized mixing solutions, including stainless steel vessels, agitation systems, thermal jackets, and CIP-compatible designs.
FAQ
How do engineers choose between 304 and 316 stainless steel mixing tanks?
Selection is based primarily on chloride content and chemical aggressiveness. 304 stainless is suitable for neutral, low-chloride (≤100 ppm) fluids. 316 stainless steel, with added molybdenum, provides far better pitting corrosion resistance and is required for high-chloride, acidic, or coastal service environments.
Why are dish and cone bottoms preferred over flat bottoms for mixing tanks?
Dished and conical bottoms eliminate the sharp corner dead zones that trap settled solids and residual liquid in flat-bottom tanks. They also enable full, clean drainage of the vessel, reducing product waste and simplifying cleaning between batches.
Which impeller type is best for high-viscosity fluids?
For high-viscosity materials, large-diameter axial-flow impellers (such as anchor or helical ribbon designs) operated at low speed with high torque are most effective. They generate bulk flow throughout the entire vessel without relying on high shear.
How do CIP systems clean chemical mixing tanks?
Clean-In-Place systems use rotating spray balls mounted inside the tank to circulate cleaning and sanitizing solutions across all interior surfaces. The automated process runs without opening the vessel or manual scrubbing, reducing downtime and improving worker safety for hazardous chemical applications.
