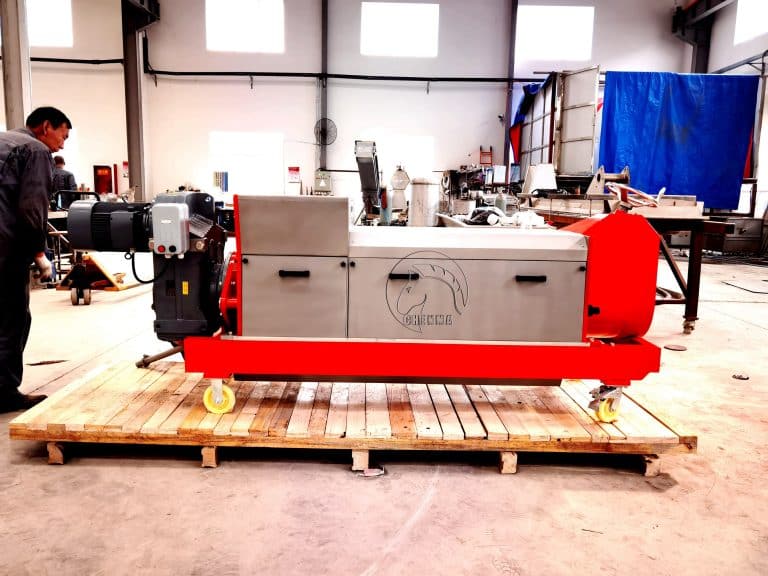

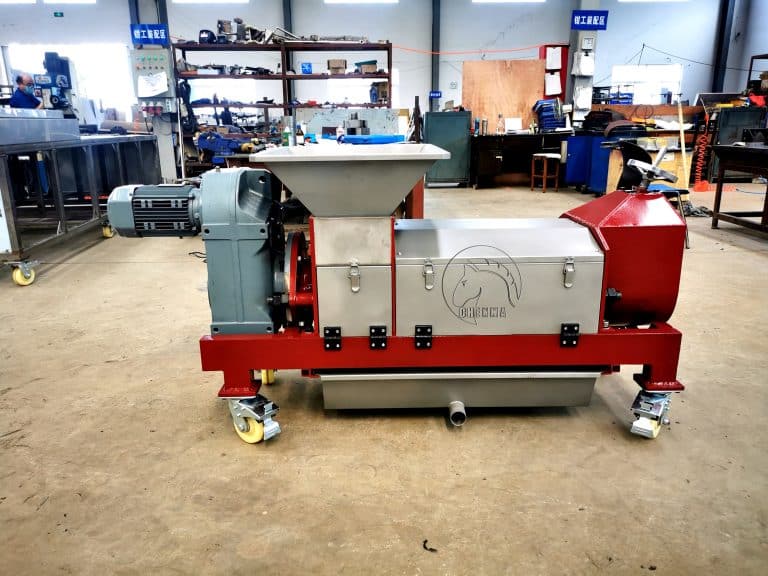

Continuous Screw Press For Red Wine Processing Equipment

Continuous Screw Press For Red Wine Processing Equipment

A Continuous Screw Press is a type of mechanical press used in the processing of red wine. It is commonly employed in the extraction of juice from grape must, especially during the crushing and pressing stages. Here’s a breakdown of how it works and its role in red wine production:

How the Continuous Screw Press Works:

1. Feeding: Grape pomace (the solid material left after crushing grapes, including skins, seeds, and stems) is continuously fed into the press.
2. Screw Mechanism: Inside the press, a rotating screw or auger moves the pomace through a cylindrical chamber.
3. Compression: As the pomace moves through the press, it is gradually compressed by the screw, extracting juice from the solids. This is done without requiring the pomace to be stopped or manually extracted between cycles, as in traditional basket presses.
4. Juice Extraction: The juice, or “free run,” is expelled through mesh screens, while the remaining solid material is pushed toward the end of the press.
5. Separation: The pressed solids (pomace) are discharged, and the juice is collected for fermentation.
6. Continuous Operation: The key advantage of the continuous screw press is its ability to operate without interruption, offering higher throughput compared to traditional batch presses.

Benefits of Continuous Screw Press for Red Wine:

• Efficient Juice Extraction: The design allows for high efficiency in extracting juice, particularly useful in large-scale wineries.
• Gentle Pressing: The continuous screw press exerts gentle pressure on the grapes, which can help preserve the quality of the juice and minimize the extraction of unwanted tannins or phenols from the skins, which is particularly important in red wine production.
• Reduced Oxidation: Since it operates in a closed system, oxidation is minimized, helping to preserve the aromatic and color profiles of the red wine.
• Higher Throughput: This system can process a larger volume of grapes in a shorter time compared to traditional presses.
• Consistency: It offers more consistent results, as there is less variation in pressure and time between cycles.

Applications in Red Wine Processing:

• Pre-Fermentation: The press is used after crushing the grapes to extract the juice, which will then undergo fermentation.
• Post-Fermentation: It can also be used after fermentation to press the wine off the skins (if producing a more delicate red wine) or for separating solid residues (e.g., after malolactic fermentation).

Considerations:

• Customization: Some presses offer adjustable settings to control the pressure applied to the pomace, allowing winemakers to fine-tune the extraction process for different grape varieties or styles of wine.
• Maintenance: The screw press, being a mechanical piece of equipment, requires regular maintenance, especially the screw and the mesh components, to avoid clogging and ensure efficient juice extraction.

The continuous screw press is an important tool for modern wineries, offering efficiency and consistency in the extraction of juice, which plays a vital role in the overall quality and character of the wine.
